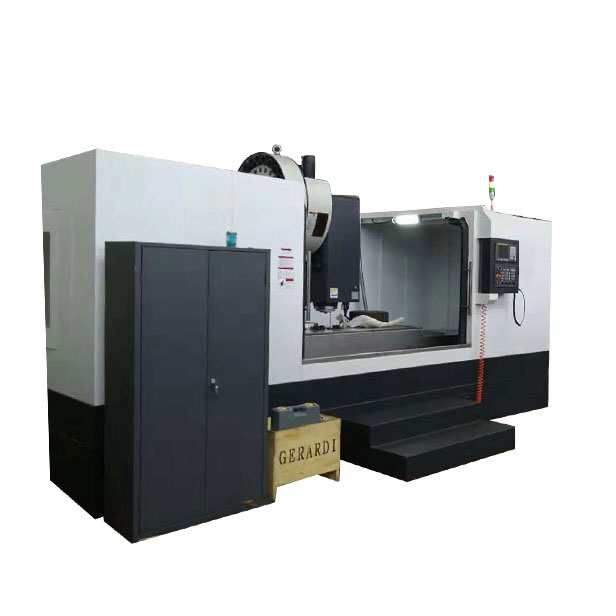

CNC Vertical Machine Center

Table size

mm

2500X1000

T-slot

5-22H7

Max. loading weight

kg

1500

X/Y/Z travel

mm

2500/1000/720(1000)

X/Y/Z ballscrew diameter

mm

63/63/63

(standard: China brand, Optional:Taiwan)

X/Y/Z linear guideway width

mm

55/55/55(Taiwan)

Bearings of ballscrew

NSK or NACHI

Spindle

BT50/190 -gear type

Spindle speed

rpm

6000 (2 steps)

Spindle power

kw

18.5

X/Y/Z feeding speed

mm/min

18000/18000/15000

X/Y/Z motor torque

Nm

36/36/36

Magazine

T24 arm type

Chip conveyor

Chain type(optional)

Position accuracy

mm

±0.01/1000

Re-Position accuracy

mm

±0.005/1000

Machine weight（approx）

kg

18600
