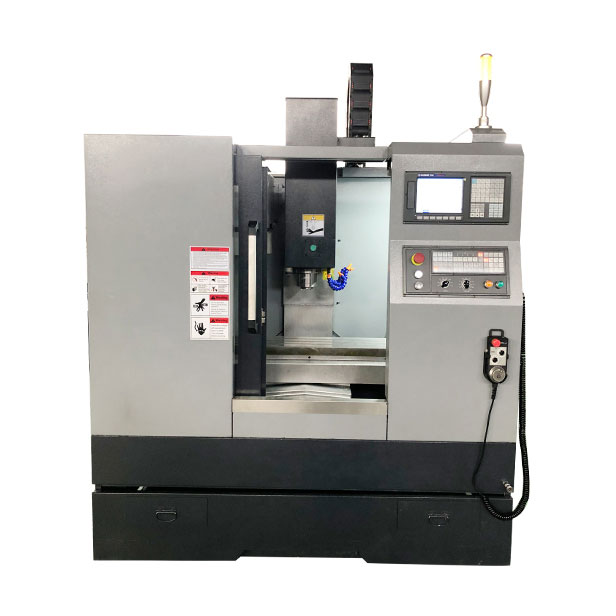

CNC Vertical Machine Center

TABLE

Table size

820x246mm

T slot (amount×width×distance)

3×14mm×63mm

Max. load weight

200kg

TRAVEL

X travel

400mm

Y travel

300mm

Z travel

500mm

Spindle nose to table

60-410mm

Spindle center to column

340mm

SPINDLE

Spindle taper

BT30

Spindle motor

3.7KW(servo) ,rigid tapping

Spindle speed

100-8000R.P.M(mark:10,000rpm)

FEED

The max moving speed

10M/min

The max cutting feed speed

5M/min

Power of X/Y/Z

1000KW/1000W/1000W(servo)

TOOL CHANGER

Tool number

12

Max.tool diameter

φ20

Max.tool length

150mm

Max.tool weight

3kg

Time of tool changing

3s

ACCURACY

Positioning accuracy

±0.005mm

Repeatability accuracy

±0.005mm

OTHERS

Pneumatic supply

0.6MPa

Weight（NW/GW）

1100kg

machine size

1650×1350×1800mm
