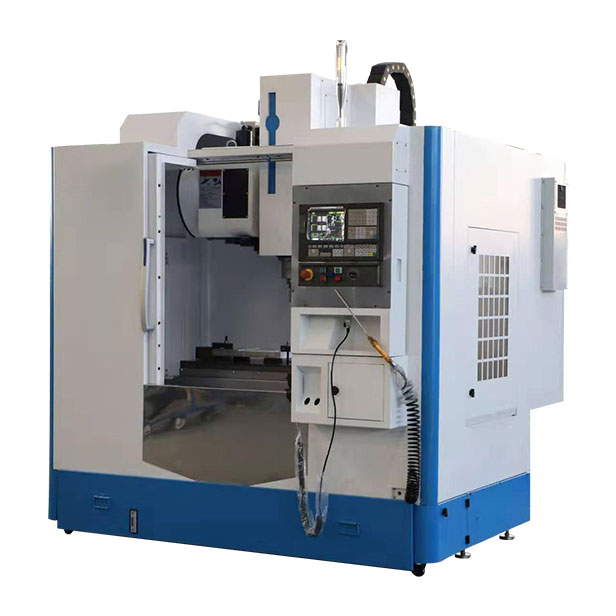

CNC Vertical Machine Center

Table size

mm

800X400

Max. Loading weight

kg

300

X-travel

mm

650

Y-travel

mm

420

Z-travel

mm

500

Distance from spindle nose to table

mm

90-590

Spindel taper

BT40

Max. Spindle speed

rpm

8000

Spindle power

kw

5.5

3-axis ballscrew

3216

X,Y linear way

mm

35(ball type)

Z linear way

mm

35(roller type)

X,Y,Z rapid feeding

m/min

20

Cutting feeding

m/min

6

Tool changer

BT40-T16

Position accuracy

mm

±0.01/300 mm

Reposition accuracy

mm

0.01/300 mm

Machine weight

kg

2800

Machine size

mm

2100X1800X2050
