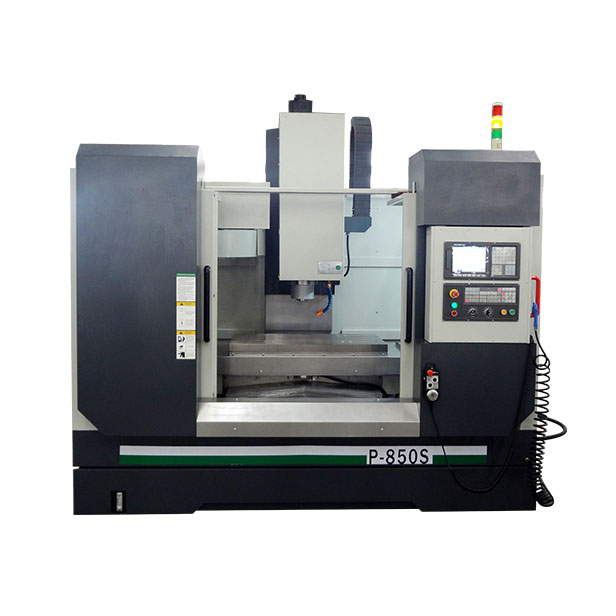

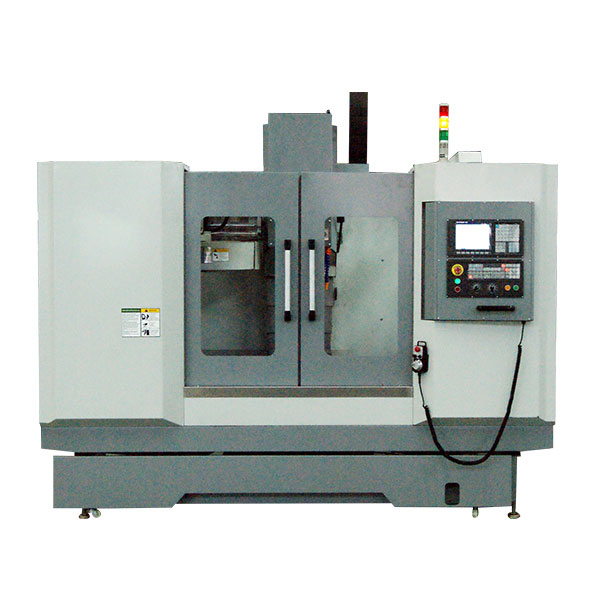

VMC856
ITEM | UNIT | PARAMETER |
Table size | mm | 1000X560 |
T-slot | 5×18×100 | |
Max. Loading weight | kg | 500 |
X-travel | mm | 850 |
Y-travel | mm | 600 |
Z-travel | mm | 550 |
Distance from spindle nose to table | mm | 100-650 |
Distance from spindle center to column | 660 | |
Spindel taper | BT40 | |
Max. Spindle speed | rpm | 8000 |
Spindle power | kw | 7.5/11 |
3-axis ballscrew | 4012 | |
X,Y,Z guideway | mm | linear way |
X,Y,Z servo motor torque | Nm | 18/18/22 |
X,Y,Z rapid feeding | m/min | 30/30/24 |
Cutting feeding | m/min | 10 |
Tool changer | BT40-T16/T24 | |
Position accuracy | mm | ±0.006 |
Reposition accuracy | mm | ±0.0025 |
Machine weight | kg | 5700/6000 |
Machine size | mm | 2820×2540×2620 |
