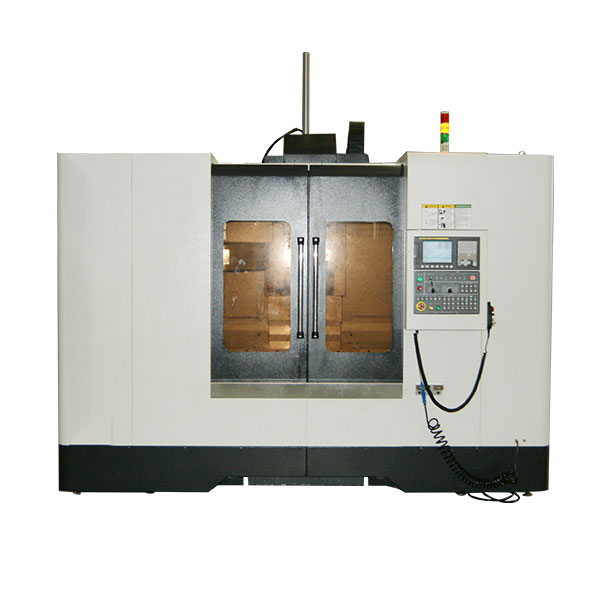

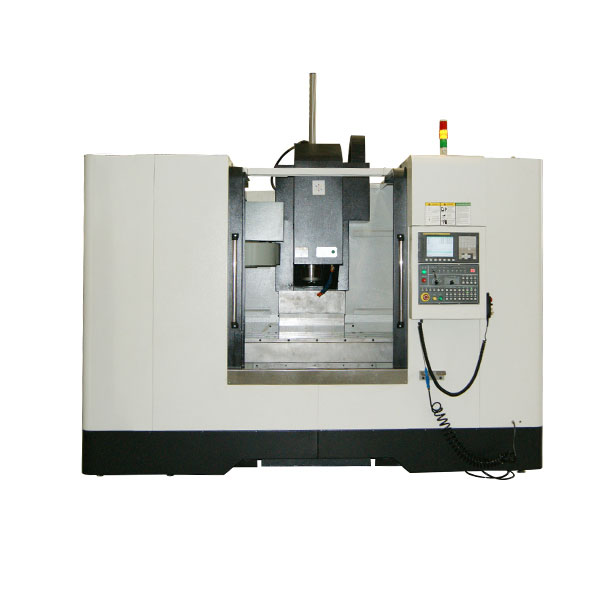

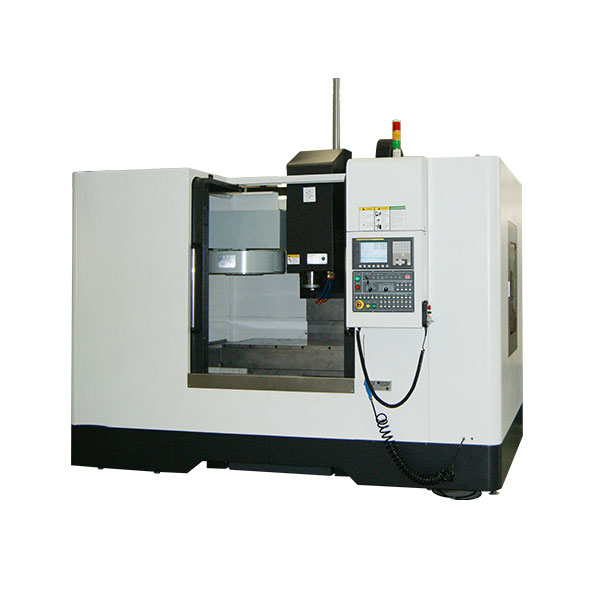

CNC Vertical Machine Center

TABLE SIZE

1300×600MM

T-SLOT

3/18/120

MAX.LOADING WEIGHT

600KGS

TRAVEL OF X.Y. Z

1100×600×600MM

DISTANCE FROM SPINDLE CENTER TO COLUMN

660MM

SPINDEL NOSE TO WORKTABLE SURFACE

150—750MM

SPINDLE MOTOR

11KW servo motor

SPINDLE TAPPER

BT40

SPINDLE SPEED

8000RPM

LINEAR WAY

TAIWAN BRAND

X,Y,Z RAPID FEEDING

24M/MIN, 24M/MIN, 20M/MIN

X,Y,Z SERVO MOTOR

22N/M

BALLSCREW

TAIWAN BRAND

POSITION ACCURACY

±0.005/300MM

RE-POSITION ACCURY

±0.004/300MM

TOOL CHANGER

24 PCS

MACHINE WEIGHT

6600KGS
