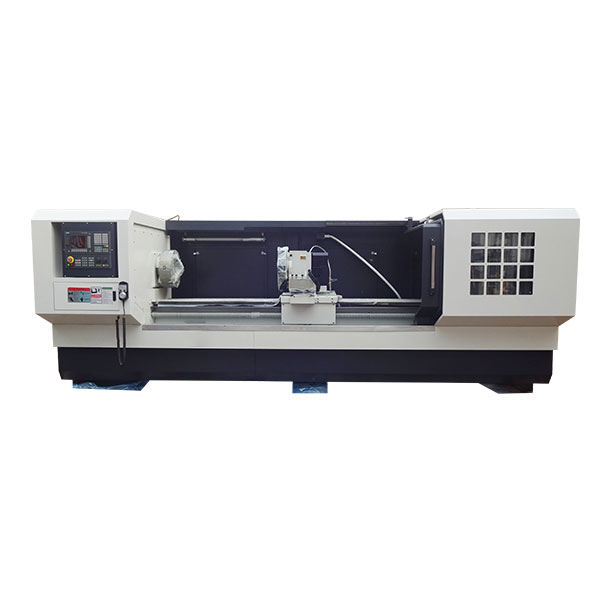

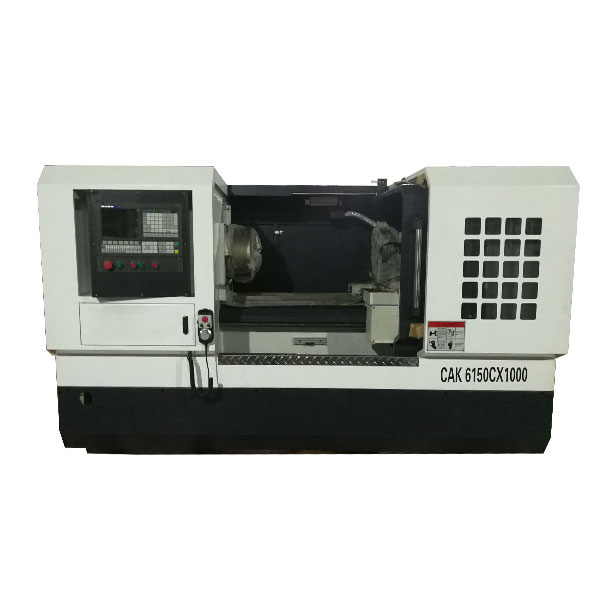

CK6150 SPECIFICATION:
Model | Parameter |
Swing over bed | 500mm |
Max turning over bed(4-station turret) | 500mm |
Max turning over bed(6-station turret) | 350mm |
Max. turning over toolpost | 280mm |
Center height | 250mm |
Max. distance between centers | 1000/1500/2000/3000mm |
Max. turning length | 850/1350/1850/2850mm |
Bed width | 400mm |
Max. loading weight | 300kgs |
Spindle bore | 52mm/82mm/105mm |
Spindle nose | D8:MT5 |
Speed range | 100—1600R/MIN |
X- travel | 260mm |
Z- travel | 850/1350/1850/2850mm |
Tool holder | 25X25mm |
Rapid feeding speed : X | 5000 mm/min |
Rapid feeding speed : Z | 6000 mm/min |
Rapid cutting feeding: X | 1～2000 mm/min |
Rapid cutting feeding: Z | 1～2000 mm/min |
Tailstock quill diameter | 75mm |
Tailstock quill travel | 150mm |
Quill taper | MT5 |
Coolant pump power | 90W |
Main motor power | 7.5KW |
Machine weight | 2100/2250/2400/2800/3600 |

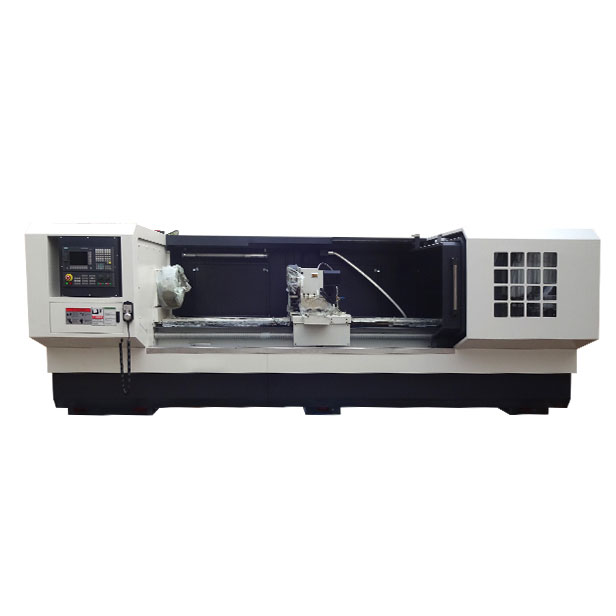

CK6166 SPECIFICATION:
Model | Parameter |
Swing over bed | 660mm |
Max turning over bed(4-station turret) | 660mm |
Max turning over bed(6-station turret) | 510mm |
Max. turning over toolpost | 400mm |
Center height | 330mm |
Max. distance between centers | 1000/1500/2000/3000mm |
Max. turning length | 850/1350/1850/2850mm |
Bed width | 400mm |
Max. loading weight | 300kgs |
Spindle bore | 52mm/82mm/105mm |
Spindle nose | D8:MT5 |
Speed range | 100—1600R/MIN |
X- travel | 340mm |
Z- travel | 850/1350/1850/2850mm |
Tool holder | 25X25mm |
Rapid feeding speed : X | 5000 mm/min |
Rapid feeding speed : Z | 6000 mm/min |
Rapid cutting feeding: X | 1～2000 mm/min |
Rapid cutting feeding: Z | 1～2000 mm/min |
Tailstock quill diameter | 75mm |
Tailstock quill travel | 150mm |
Quill taper | MT5 |
Coolant pump power | 90W |
Main motor power | 7.5KW/11KW |
Machine weight | 2300/2450/2600/3000/3800 |
