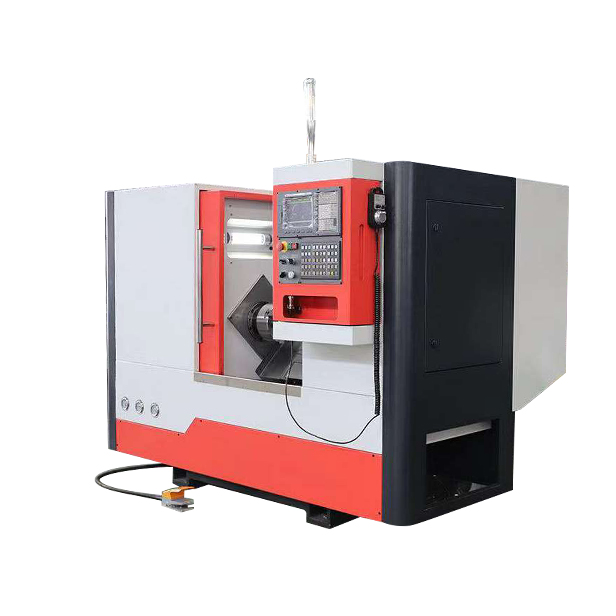

Slant Bed

TRAVEL

X

mm

240

Z

300

Max. dia. swing over bed

mm

400

Max. dia. swing over carriage

mm

160

Width of linear way

mm

30

Spindle nose

A2-6

Spindle bore

mm

65/50

Chuck size

8inch/200mm

Max. spindle speed

rpm

3000

Main motor

Kw

5.5

Cutting speed

mm/min

1-4000

Rapid speed

m/min

X20/Z:20

Position accuracy

mm

0.008/300

Machine size

mm

2580 X1700X1800

Machine weight

kg

1850
