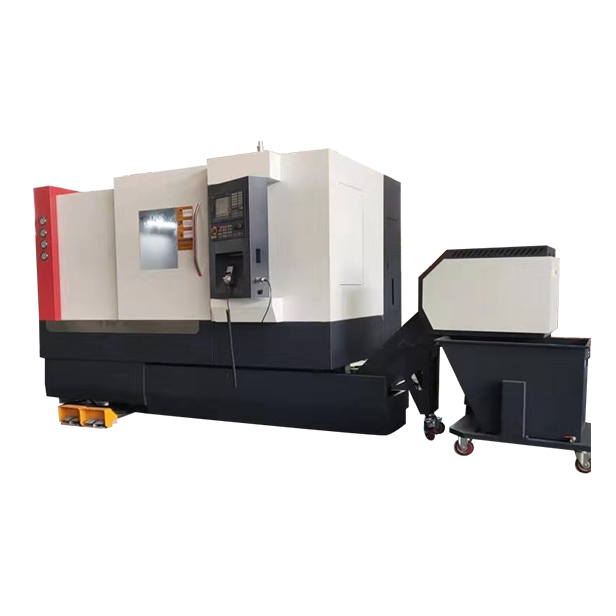

Slant Bed

WORKING RANGE

Max. swing over bed

mm

φ540

Max. swing over slide

mm

φ270

Max. turning dia.

φ400

Max. workpiece length

mm

550

SPINDLE

Max. speed

r/min

3000

Spindle type

A2-6

Spindle bore

mm

φ62

Bar dia. through bore

mm

Φ48

Chuck size

inch

8/10

Motor power

kw

11

TRAVEL

X

mm

220

Z

mm

550

FEEDING

X-rapid

m/min

18

Z-rapid

m/min

18

Cutting feed

mm/min

1-5000

TAILSTOCK

Travel of tailstock

mm

350

Tailstock movement

hydraulic

GUIDE

Slant degree

degree

45

Model

Linear way

PRECISION

accuracy

mm

0.016

Re-position accuracy

mm

0.008

MACHINE

N.W

kg

3200

Size

mm

3550×2050×2050
