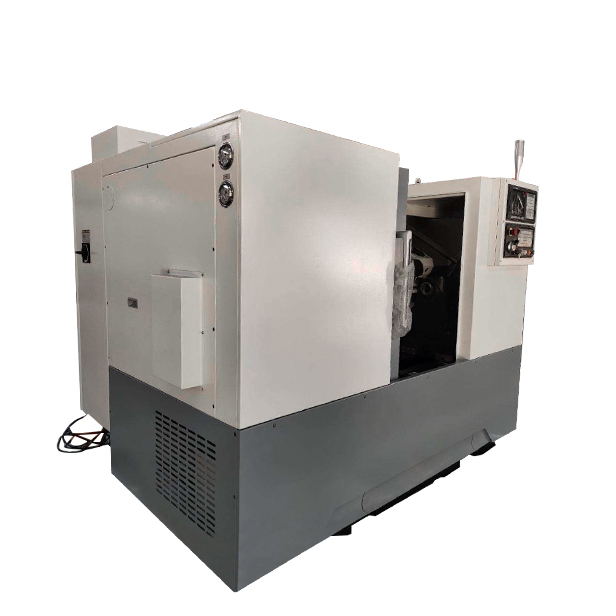

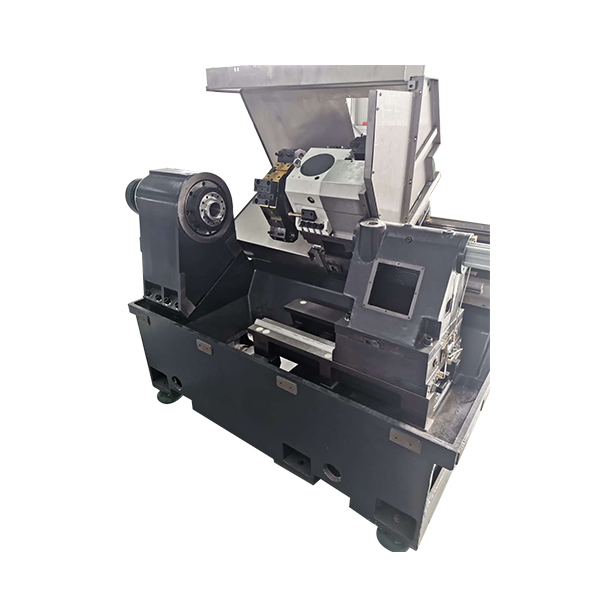

Slant Bed

Max. swing over bed

mm

500

Max. cutting length

mm

500

Max. cutting dia.

mm

360

Max. swing over carriage

mm

300

Standard cutting dia.

mm

240

Spindle nose

A2-6

Spindle bore

mm

65

Max.dia of bar though bore

mm

50

Spindle speed

r/min

50～4500

Max. output torque of spindle

Nm

177

Main motor

kw

11

Chuck size

inch

8²

standard

X-rapid feeding speed

m/min

30

Linear way

Z-rapid feeding speed

m/min

30

Linear way

X-travel

mm

200

Z-travel

mm

550

Turret

8-position

12-position

Travel of tailstock

mm

450

Travel of tailstock quill

mm

100

Taper of tailstock

morse

5#

Tool holder

Turning holder

mm

25×25

Boring holder

mm

φ40/φ32/φ25/φ20

Max. loading weight

plate

kg

200(including chuck)

Shaft

kg

500(including chuck)

Machine weight

kg

3600

Machine size

mm

2300×1700×1930
